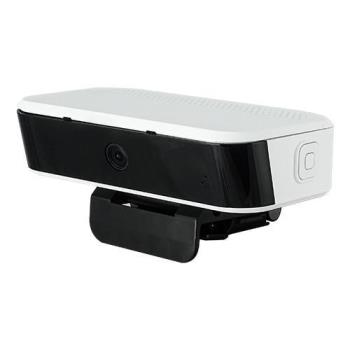

Ability offers 8MP resolution AI USB camera. Not only does a compact form factor features with high portable capability but also the plug-and-play USB interface makes it intuitive and effortless to use.

The on-the-go USB camera breaks the boundaries of conventional camera applications and is ready-to-use with devices at hands like laptop or desktop. Empowered by Intel® Movidius™ Myriad™ X VPU, the development of applications on the USB camera are accelerated by Intel® Distribution of OpenVINO™ Toolkit, which can optimizes pre-trained deep learning models.

https://www.youtube.com/watch?v=V3Ze0SQSJSo

Key Features

•Built-in Intel® Movidius™ MA2485 VPU

•Intel® Distribution of OpenVINO™ Toolkit

•High quality imaging with 8MP resolution

•Portable & Compact Form Factor

•Plug-and-Play w/ USB

•Wide Horizontal Angle up to 123.1° ( FOV )

Specifications

Model Name : VSUNQJ0

Model Type : AI-Cube 8MP UHD Myriad X USB A.I. camera

Operating System : Linux

Image Sensor : 1/2.5" progressive scan

Max. Resolution : 8MP UHD

Effective Focal Length ( EFL ) : 3.16± 5% mm

Focal Range : 2m~6.5m

Fix iris : 1/2.5" F2.0± 5%

Field of View : FOV-D = 146.6° ± 5° / FOV-H = 123.1° ± 5° / FOV-V = 65.1° ± 5°

Shutter Time : Normal speed mode / High speed mode (for fast moving objects) / Low speed mode

White Balance : Auto, Indoor, Outdoor, One Push

Digital Noise Reduction : 2D,3D digital noise reduction

WDR Technology : 2ch shutter speed WDR Support

Minimum Illumination : Lowest light AF at 40lux

Video Compression : H264, MJPEG

Maximum Frame Rate : 60fps @1920 x 1080

Maximum Image Resolution : 3840 x 2160 P30, H.264 only

USB Video Communication Protocols : UVC 1.1

Audio Codec : EQ,DRC for internal Mic, bypass for external plug-in

Casing : IP4X

Safety Certifications : CE, FCC, EMI Scan Class B

Operating Temperature : -10°C ~ 40°C (14°F ~ 104°F)

Interface :

1xUSB 2.0: USB Type C ( Power Supply )

1x HDMI 1.4B Output

1x DC jack (5V/2A)

1x Mic jack (Audio in) Priority 1 - 3.5mm

Internal Microphone : 2 x Mic Priority 2 (analogue, 2 CH)

Accessories | Power adaptor : 1x (5V/2A) Ac plug (UK/AU/US/EU)

Accessories | USB cable : 1x Type C(Male) to USB-A cable(Male) 1.8M

Accessories | USB cable 3.1 : 1x Type C 3.1(Male) to USB Type C 3.1(Male) 1.8M
