Ability AI Cube camera is a highly integrated SoC with high image quality, low bit rate, and low power consumption. The target is the application 8Mp edge computing IP cameras. SoC integrates ARM Cortex A9 CPU core, new generation ISP, H.265/H.264 video compression codec, high-performance hardware DLA module, graphics engine, display controller, Ethernet PHY, USB 2.0, audio codec, RTC and SD/SDIO 3.0 can provide the best cost-effective edge computing IP camera solution.

Key Features

•Support USB 2.0

•High quality imaging with 8MP resolution

•Dual Core ARM® Cortex™ A9

•Support DDR 1Gb *2 + Flash 4Gb

•DLA (Deep Learning Accelerator) engine with computing power up to 1.5 TOPS

•MDBC Motion detection and background construction engine

•Support up to 25fps @ 8MP

•Support H.264/AVC codec BP/MP/HP, level 5.1 H.265/HEVC codec MP, level 5.0

•Allows SDK Customization

Specifications

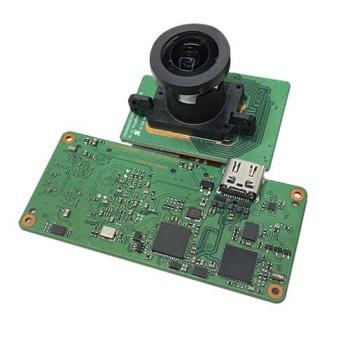

Model Type : AI-Eye 8MP USB Module

Operating System : Linux

Image Sensor : 1/2.8" progressive scan

Max. Resolution : 3840x2160 (8MP)

Focal Length : 2.8mm±5%

Auto-iris : N/A

Shutter Time : 1/25 sec. to 1/8,000 sec.

HDR Technology: Yes

IR Illuminators : Optional

Video Compression : H.264, H.265

Maximum Frame Rate : 25fps @3840x2160

Audio Compression : AAC, G.711

Casing : N/A

Accessories : N/A

Provide Services

We offer, Full Packages to Meet All Your Needs.

A. Hardware Modules (Ability) + AI Algorithm (Client) + System Software (Client)

B. Hardware Modules (Ability) + AI Algorithm (Client) + System Software (Ability)

C. Hardware Modules (Ability) + AI Algorithm (Third party AI) + System Software (Client)
