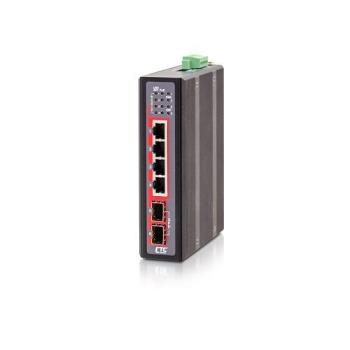

The IGS-402CS-4PH is 6 Ports unmanaged industrial grade Ethernet PoE switches with 4x 10/100/1000Base-T PoE+/PoE that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature range models (-10 to 60°C) and wide operating temperature range models (-40 to 75°C) fulfill the special needs of industrial automation applications.

Features

▪ Provides 4-port IEEE 802.3at/af PoE output (30W/Per Port)

▪ Maximum PoE output power budget 120W

▪ 48VDC (44~57VDC) redundant dual input power

▪ Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M ; RJ45 Auto/force mode, 10M/100M, Full/half

▪ Supports flow control

▪ Provides broadcast storm protection

▪ DIN Rail mounting or wall mounting
