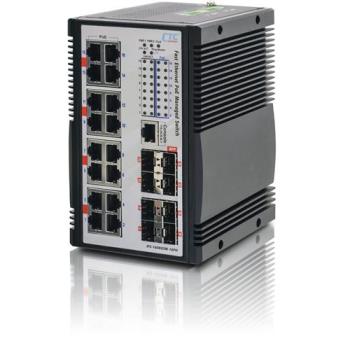

An Industrial 16-port PoE Ethernet switch, Layer 2 managed, IFS-1608GSM-16PH with 8 100/1000Mbps SFP slots, each PoE port support IEEE802.3af/at standard of the maximum 30W power output, used to connect and feed various types of Ethernet power devices, such as smoke sensors, Wi-Fi access points, femtocells, alarm centers, and IP cameras. the din-rail and fanless 24-port switch adopts an enhanced and hardened design for high surge protection, wide operating temperature and safety certified to meet critical and centralize strict requirements.

Features

▪ 48VDC (46~57VDC) redundant dual power input

▪ Provides 16-port IEEE 802.3af / 802.3at PoE+ output (30W per port, total 360W)

▪ Cable diagnostics, identifies opens/shorts distance

▪ Provides 5 ring instances that each can support µ-Ring, µ-Chain or Sub-Ring type for flexible uses. Supports up to 5 rings in one device

(Please see CTC µ-Ring white paper for more details and more topology application)

▪ µ-Ring for redundant cabling, recovery time<10ms in 250 devices

▪ Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End

Transparent Clock, Master, Slave mode by each port

▪ Supports EMS Management
