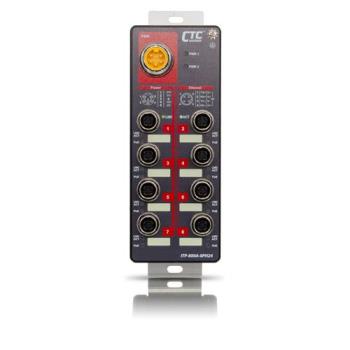

The EN50155 certified M12 PoE switches ITP-800A-8PH24, metal housing IP40 protection, have 8x 10/100Base-TX M12 D-code

Ethernet ports, fanless and redundant power input. Designed for heavy industrial, vehicle and rolling stock applications, utilizing M12 connectors to ensure secure connections and reliable operation, and withstand environmental disturbances such as vibration and shock. 24VDC power input design, compatible with vehicle battery power supply, realizes PoE function through voltage boosting. EN50155 certification covers operating temperature, mains input voltage, surge, ESD, vibration and shock, making the switch suitable for vehicle, rolling stock applications.

Features

▪ Use M12/M23 connector anti vibration and shock for vehicle, rolling stock, and railway applications

▪ 24/48VDC (20~57VDC) redundant dual input power with built-in very high efficiency (97~98%) to boost PoE output voltage to 50VDC

▪ Regulated PoE output voltage (50VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100 meters

▪ Wide operating temperature -40~75°C (ITP-800A-8PHE24)

▪ CE, FCC, EN62368-1, EN51055, EN50121-4 and EN45545-2 for railway certified

▪ Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
