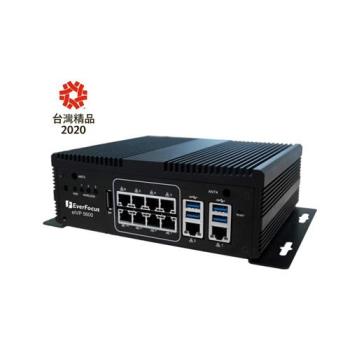

產品型號 eIVP-KBU-IV-V0004

處理器 Intel® 7th Gen. Core™ i5/i7 Processor

主記憶體 Up to 32GB, DDR4 260-pin SODIMM (optional)

壓縮格式 H.264 / H.265

影像輸入 Up to 8 IP cameras

影像輸出 HDMI x 1, DP x 1

音訊輸入 Mic-in x 1

音訊輸出 Line-out x 1

解析度 1920 x 1080 at 30fps (NTSC) / 25fps (PAL)

內部硬碟槽 2.5" HDD x 2 (optional)

Removable SSD Tray Hot swappable 2.5’’ SSD x 2 (project base) via extension module

RAID 0/1

CE / CFast / mSATA Slot mSATA slot x 1 (if mSATA x 1 used, then only one SATA available)

乙太網路 RTL8111E 10/100/1000 based; GbE port x 2; PoE port x 4 (up to 8) (IEEE 802.3 at/af) * Every 4 PoE ports shares 60W of power budget

無線網路 Supported (Optional)

4G / 5G Supported (Optional)

GPS / Gsensor On board (GPS/GLONASS), G-Sensor

DI Digital input x 4 (wet/dry contact with Isolation Protection 3,000 VDC)

DO Digital output x 4 (compatible 5 V/TTL, 31mA max. per channel)

電源 DC 10-36V, with ignition pin

尺寸(W x D x H) 6.85’’ x 8.1” x 2.76” / 174mm x 205mm x 70mm (without bracket)

重量 5.7lb (2.6kg)

作業溫度 -4°F ~ 158°F (-20°C ~ 70°C); Project base: -40°C ~ 85°C

震動/衝擊 MIL-STD-810G

認證 CE & FCC Class A, RoHS
