Motor type: 2 phases / PM type stepping motor

Output: 0.342° based on the reduction ratio 1/131

Coil resistance: 28.5 ohm/phase

Excitation: Bipolar

Thickness: 5.32mm

Weight: 0.6 g

Gear reduction ratio: 1/131 (Maximum)

Connection: Harness, Lead wire, FPC are available

Torque: Min 1mN?m(Condition :2phases．600pps．3V)*with our own standard

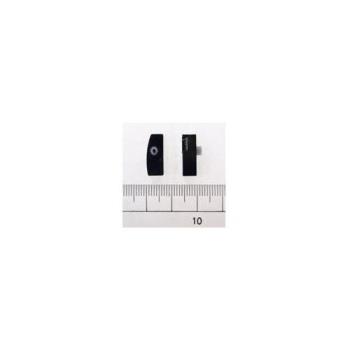

Micro Step Gear Motor－MF03G為SEIKO Precision所開發之現有尺寸之最小的步進馬達. 適用於小型化CCTV/IP CAM之開發製造, 可節省鏡頭模組週邊零件所占空間, 以達成小型化之目標. 如有任何需求或欲進一步了解產品相關訊息, 非常歡迎與我們連繫指教, 謝謝!
