產品特色
Description

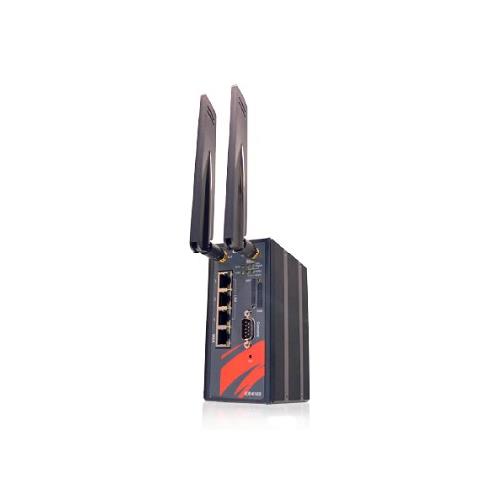

The ICR-4103 is a high-performance, industrial grade, 4G-LTE cellular router which is designed to offer fast connectivity over cellular networks for industrial applications. ICR-4103’s Ethernet ports can allow up to 3 Ethernet devices to link to the cellular network. It provides dual SIM card slots and one Ethernet WAN port which can automatically re-connect and auto-switch to offer cellular network redundancy and ensure uninterrupted connectivity. The ICR-4103 cellular router is integrated with WAN, LAN, SIM, VPN, Firewall, built-in DI/DO and Serial port services. In addition, ICR-4103 uses the highest level of industrial grade design for connection in the most demanding environments and is an ideal solution for Industrial Internet of Things (IIoT) and M2M (Machine-to-Machine) applications, such as remote control and monitoring, bus ticketing collection system, CCTV, SCADA, digital signage, kiosk and intelligent traffic systems.






Features

▪ Supports multi-band connectivity with FDD 4G LTE/ TDD 4G LTE/ 3G WCDMA/2G GSM/ LTE Cat4
▪ 2 SIM card slots 4G LTE antenna, 1x WAN (10/100Base-TX) + 3x LAN (10/100Base-TX UTP), 2x DI + 1x DO, 3x Serial COM port (2x RS232, 1x RS485)
▪ Highly reliable and secure for mission-critical cellular communications
▪ Provide flexible options to configure LAN/ WAN ports
▪ Built-in dual SIM for network redundancy / failover/ roaming over/ back up
▪ Integrated dual detachable antenna against radio interference
▪ 4G LTE and WAN port for seamless connection and redundancy
▪ Supports 3x Serial port (1x RS484, 2x RS232) for IoT and automation application, ModBus RTU and ModBus/TCP gateway, MQTT
▪ Supports Routing/Firewall, NAT, Virtual Server, DMZ, Port filtering, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP 1 & 2, VRRP, OSPF V2 & V3, BGP
▪ Supports VPN, OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256)
▪ IPv6/IPv4 dual stack and all applications are IPv6 ready
▪ Supports DHCP server and client, PPPoE, Static IP, SNTP, DNS Proxy, DDNS, QoS, Virtual Com, UPnP
▪ Supports Alarm message : DO, SNMP Trap, E-mail
▪ Supports SNMP, TR069,Web, Telnet, CLI for management
▪ Supports dual Image firmware upgrade by Web
▪ CE, FCC, Rail Traffic EN50121-4 certified
▪ Safety EN60950-1 certified
▪ Radio RED ETSI EN301 489-1/-19/-52, EN301 908-1, EN303 413, NCC certified
▪ Heavy industrial grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
▪ Rugged metal, IP30 protection & Fanless design
▪ Wide operating temperature -20 ~ 75°C
4G LTE router - ICR-4103
