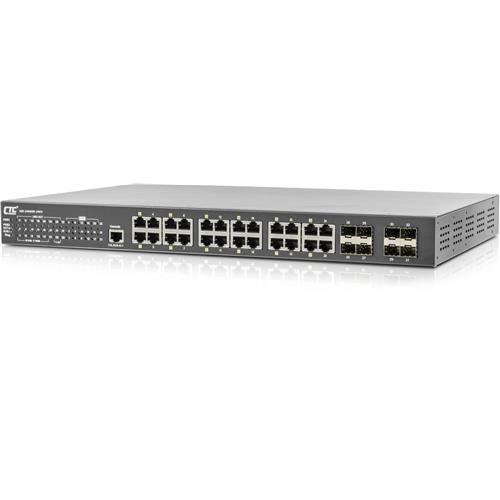

工業級 Layer 3 GbE PoE 交換機 - IGR-2408SM-24PH
產品特色
Description
As an Industrial grade Layer 3 Ethernet switch, the IGR-2408SM-24PH provides full Gigabit capability with high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. IGR series has 8x Gigabit SFP slots and 24x Gigabit RJ45 Ethernet ports with PoE. They support Layer 3 routing function, ERPS ring, RSTP/STP and u-Ring redundancy
technologies, support wide operating temperature, fanless design, to increase system reliability and the availability of your network.
Features
▪ Maximum up to 24x IEEE 802.3af / 802.3at PoE+ output, 30W per port, 400W PoE power budget in total
▪ Redundant dual input power 48VDC (44~57VDC)
▪ STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for network redundancy
▪ Provides 14 instances each can support μ-Ring, μ-Chain or Sub-Ring for flexible networking applications
▪ μ-Ring redundancy, recovery time <20ms in 250 devices
▪ Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End
Transparent Clock, Master, Slave mode by each port
▪ Supported EMS Management
