產品特色
Product Overview

Ability offers software-defined 8MP resolution AI BOX camera with industrial-grade design. Powered by Gen3 Intel® Movidius™ VPU which offers 4 times faster Deep learning inference performance than previous Intel® Movidius™ Myriad™ X VPU and supports Intel® OpenVINO™ toolkit that optimizes pre-trained deep learning models. It is an easy to use system that meets the needs of customers' application by making it convenient for developers to accelerate model training and deployment.

https://www.youtube.com/watch?v=bR38Qh4PbQk
https://www.youtube.com/watch?v=ENNpUUKHsvA


Key Features

•Built-in Gen3 Intel® Movidius™ VPU
•Intel® Distribution of OpenVINO™ Toolkit
•High quality imaging with 8MP resolution
•Support ONVIF Profile S


Specifications

Model : AI-Vue 8MP BOX
Image Sensor : 1/1.8" progressive scan
Max. Resolution : 3840x2160 (8MP)
Focal Length : 4.46mm~11mm±5mm%
Auto-iris : f/1.5 ~ f/4.3
Field of View : 40.03°~ 110.9°(Horizontal) / 22.59°~ 57.4°(Vertical) / 45.98°~136.6°(Diagonal)
Shutter Time : 1/30 sec. to 1/8,000 sec.
HDR Technology : Yes
Minimum Illumination : 1.25Lux@F max. 1/30s(Color) / 0.95Lux@F max. 1/30s(B&W) / 0 lux with IR on
Video Compression : H.264, H.265, MJPEG
Maximum Frame Rate : 30fps @3840x2160
Maximum Streams : 3 simultaneous streams
Image Settings :
Configurable brightness, contrast, saturation, sharpness, white balance, rotate view, exposure mode, stream format, resolution, frame rate, rate control, video quality, HDR, LDC, IR cut filter, 2DNR / 3DNR, privacy masks, video rotation
Audio Compression : AAC
Network Protocols :
IPv4 ; HTTP ; HTTPS ; SSL/TLS ; DNS client ; NTP client ; RTSP ; RTP ; TCP ; UDP ; IGMP ; ICMP ; DHCP ; ARP
ONVIF : Profile S
Safety Certifications : CE, FCC class A, BSMI
Operating Temperature : IR ON: Operating temperature : -30℃ ~ 40℃ / IR OFF: Operating temperature : -30℃ ~ 60℃
Humidity : 20% to 95%
On-board Storage : 1x Micro-SD ; SD / SDHC /SDXC UHS-I, 32GB to 256GB, class 10
Interface :
RJ-45 cable connector for Network 10/100/1000 Mbps PoE (IEEE 802.3at) / DC 12V / AC 24V / Alarm Input*1 & Output*1 / Audio Mic. in*1 & Line out*1
Web Browser : Google Chrome
Dimensions : TBD

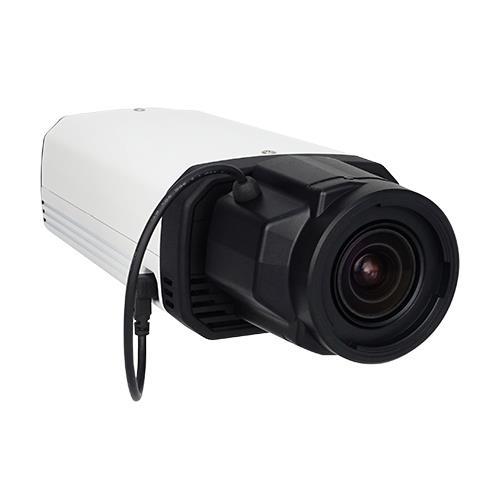

ABILITY AI-Vue Series – VS2MLX0 8MP Box Camera Powered by Gen3 Intel® Movidius™ VPU
